Parts of Microwave Oven

Microwave oven consists various parts due to which it's functioning takes place some of the parts are shown in the image given below :

Parts of microwave oven

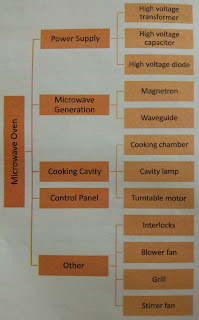

The following figure lists parts of microwave oven :

Parts of microwave oven

Power Supply

• High voltage transformer : It changes a high voltage power source which passes energy to the magnetron. It also drives filament for magnetron.
• High voltage capacitor : It is directly connected to the transformer, magnetron and via a diode to the chassis.
• High voltage diode : It is used to sustain high voltage surges in Microwave circuit.

Microwave Generation

Is dependent on the following :

• Magnetron : Converts high-voltage electric energy to microwave radiation.
• Waveguide : Controls the direction of the micro waves moving in the cooking chamber. It is done by confining the space of the releasing microwaves from the magnetron

Cooking Cavity

A cooking cavity of a microwave oven consists:

• Cooking chamber : It confines the output radiation so that food can get heated up.
• Cavity lamp : It is given to see the progress of food being cooked inside.
• Turntable motor : It is used to format even spread of heat as it rotates the food.

Control Panel

Microwave oven uses either a digital control panel or an analog dial -type label for operation. The following figure lists the features present in the control panel:

Features of microwavce oven

Other Parts

The following figure lists the other essential parts present in the microwave oven :

Blower fan

• It is used to exhaust the hot air to maintain temperature of magnetron.

Stirrer fan

• It is used to disperse the microwave inside the oven
• It prevents dirt and grease from entering the Waveguide.

Grill

• It is used for grilling the food.
• It reduces the actual cooking time of food by pressing -heating the oven before putting any food.

Interlocks

• It is used to stop the microwave oven from working if any of the 2 or 3 locks are not locked properly.
